Product Description

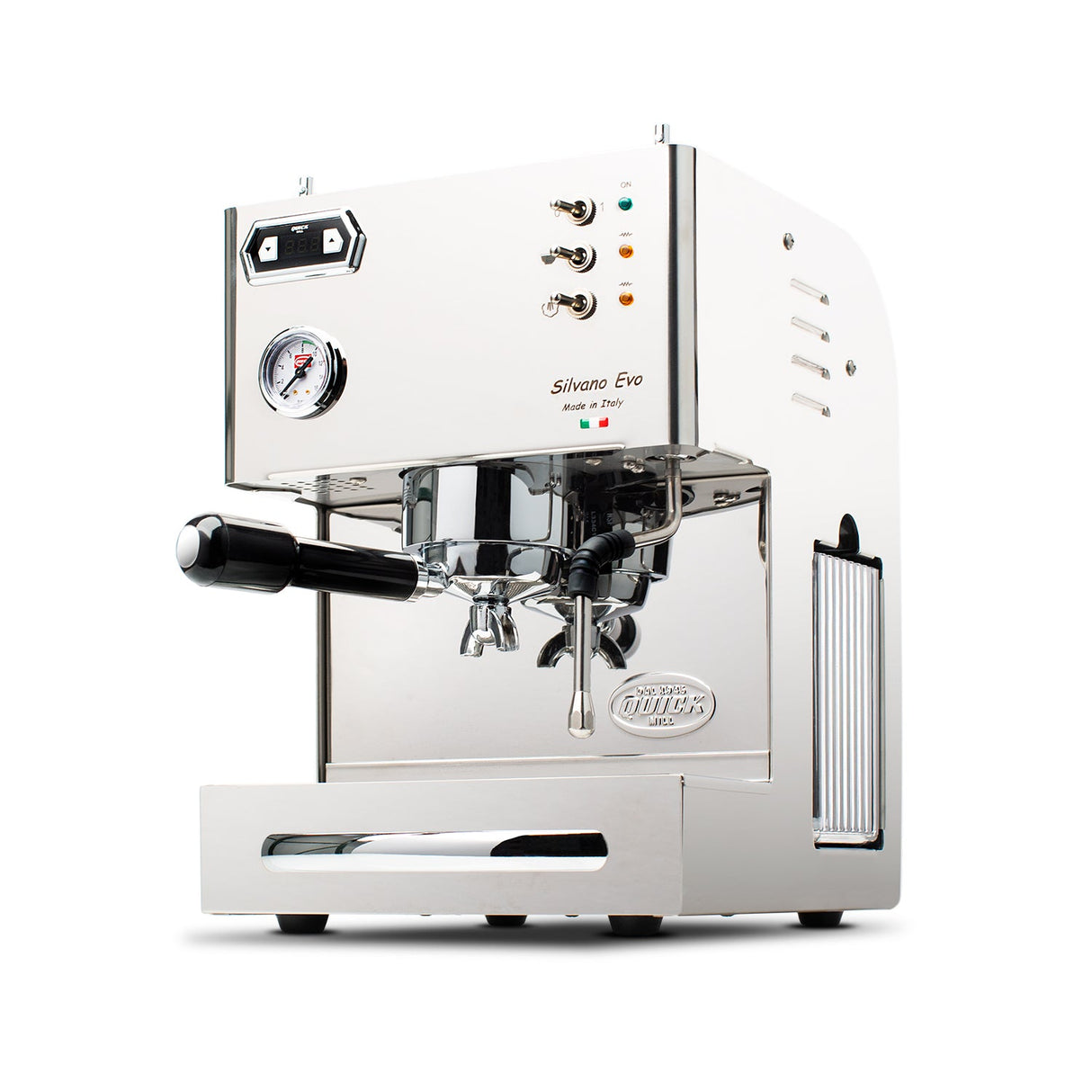

The Quick Mill Silvano Evo is a compact home espresso machine featuring a hybrid system designed for brewing and steaming. Its stainless steel exterior combines traditional espresso machine styling with modern temperature-control technology. The machine is structured for users who want a small-footprint unit capable of preparing espresso and milk-based beverages with consistent performance.

Compact Design

The Silvano Evo is suited for kitchens with limited counter space. Its slim profile and stainless steel construction allow it to integrate easily into home environments. The side-loading water reservoir and accessible controls contribute to straightforward daily use.

Designed for Small Spaces

Quick Mill designed the Silvano Evo to provide core espresso and steaming features within a compact format. Its layout supports efficient operation without requiring the counter space typically associated with larger machines.

Hybrid Brewing and Steaming System

The Silvano Evo uses a hybrid system featuring a coffee boiler paired with a dedicated thermo block for steam production. The thermo block provides continuous steam availability, and the steam circuit may be switched off independently when steaming is not required. This allows users to prepare espresso and steam milk at the same time while managing energy use.

Heat-Up Characteristics

The thermo block contributes to faster warm-up times compared to traditional steam boilers, making the machine suitable for situations where quick heating is preferred. Power to the machine may also be managed through external timers if desired.

PID Temperature Control

A PID controller manages the coffee boiler temperature, supporting stable brewing conditions. The PID uses small energy pulses to maintain a narrow temperature range and features a built-in shot timer for monitoring extraction duration.

Durability and Convenience Features

The Silvano Evo includes:

• Two vibratory pumps (16-watt and 52-watt), each with thermal fuse protection

• Adjustable expansion valve located under the group

• Pump pressure gauge

• Three-way group solenoid valve

• Solid-state relay

• Swiveling stainless steel steam arm with two-hole steam tip

• Independent switch for turning the steam circuit on or off

• 3 inches of clearance between the drip tray and portafilter

Setup Tip

Before steaming milk for the first time, it is recommended to purge a small amount of air from the steam wand to clear any residue from initial assembly.

Technical Notes

• Resettable high limits for both the coffee boiler and steam circuit

• Two vibratory pumps with thermal protection

• Adjustable expansion valve accessible without removing the shell

• Pump pressure gauge

• Three-way solenoid valve

• Solid-state relay

• Independent steam-bank switch

• Hybrid 0.4-liter boiler

Included Components

• Double-spout portafilter (58 mm)

• Single insert basket

• Double insert basket

• Backflush disk

• Group cleaning brush

• Plastic coffee scoop

• Plastic tamper

Specifications

Dimensions

Electrical

Other Specifications
