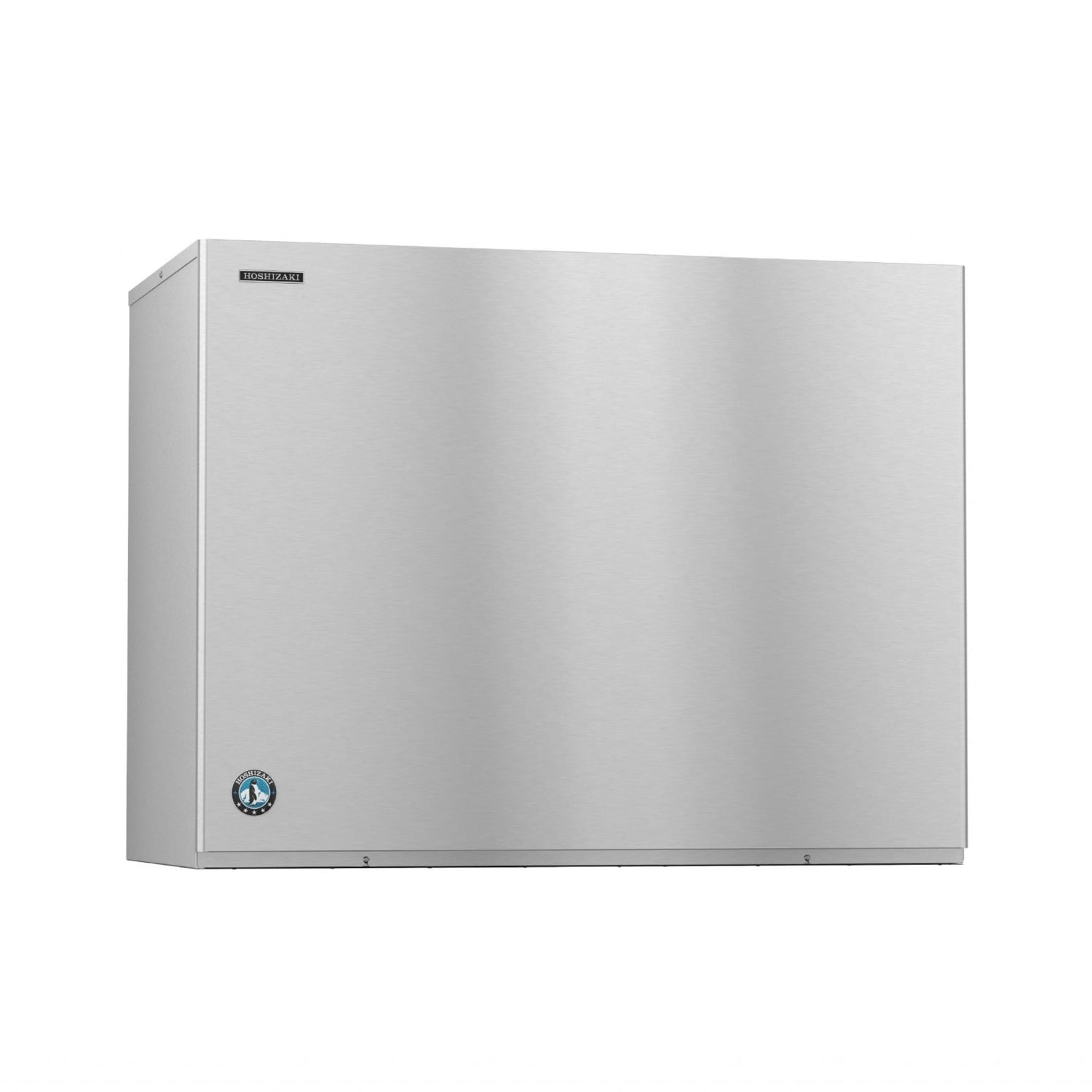

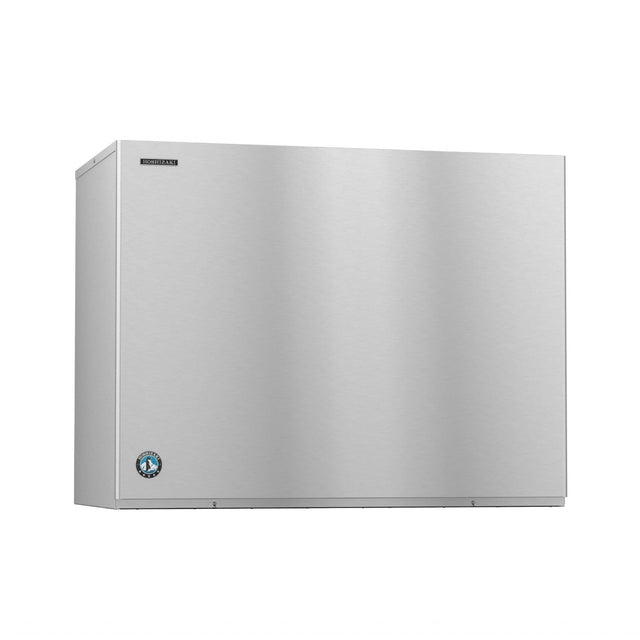

Hoshizaki KM-2200SRJZ3 48-Inch Wide 2206 LB Daily Ice Production Modular Remote-Cooled Cube-Style Ice Maker

Product Description

The Hoshizaki KM-2200SRJZ3 is a high-capacity, cube-style ice maker built for demanding commercial environments. It produces crescent-shaped ice cubes efficiently and reliably, making it well-suited for food service, hospitality, and healthcare operations that require a continuous and sanitary ice supply.

Features

Design and Construction

• Stainless steel exterior provides durability, corrosion resistance, and easy cleaning

• Remote condenser configuration allows flexible installation and reduced heat output (sold separately; “Z” model condenser required for “Z” model ice machine)

• Air-cooled operatio helps provide consistent performance under high workloads

• NSF and UL certified for safety and sanitation compliance

• ENERGY STAR rated for energy efficiency

Ice Production

• Produces crescent-style ice cubes suited for beverages, food displays, and general service applications

• H-GUARD Plus antimicrobial protection helps maintain sanitary ice production

• Production capacity up to 2206 lb per 24 hours at 70°F air / 50°F water

• AHRI certified output: 2075 lb per 24 hours at 90°F air / 70°F water

Electrical and Dimensions

• Electrical: 208–230V / 60Hz / 3 Phase, 15.9 amps

• Height: 36.44 inches

• Width: 48 inches

• Depth: 27.38 inches

• Weight: 400 lbs

Performance

• High-volume ice output meets peak demand with consistent production

• Energy-efficient operation helps lower overall utility costs

• Durable construction allows for long-term reliability and reduced maintenance needs

• Remote condenser system minimizes noise and improves temperature management in work areas

Applications

Food Service

Delivers a steady supply of crescent-style ice for beverages and food service applications.

Healthcare

Supports sanitary ice production for patient care and other medical uses.

Hospitality

Provides reliable, high-capacity ice supply for hotels, bars, and event facilities.

Technical Specifications

Warranty

Commercial warranty coverage includes:

• 3 years parts and labor

• 5 years evaporator parts and labor

• 5 years compressor and condenser parts
