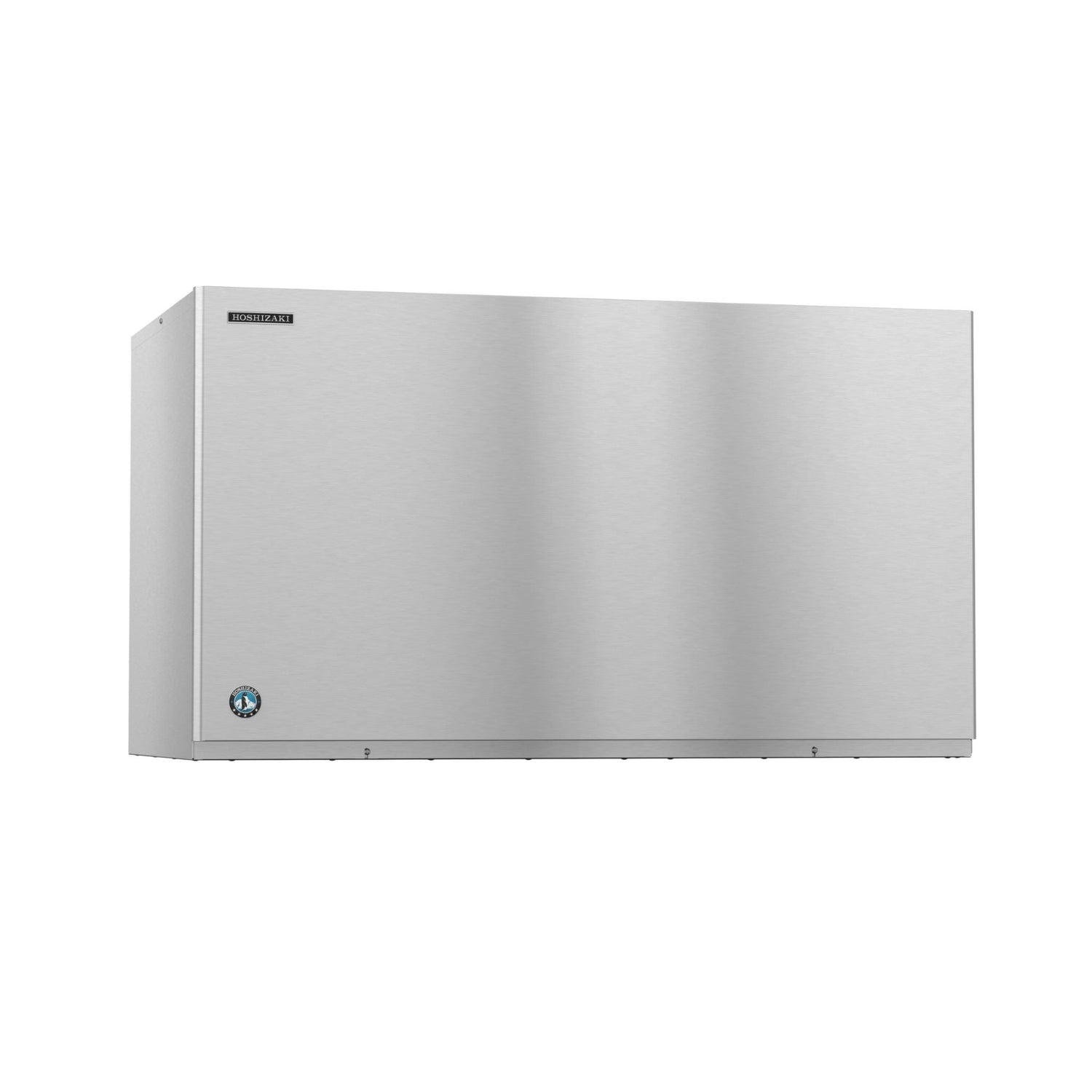

Hoshizaki KM-1601SRJZ3 48-Inch Wide 1635 LB Daily Ice Production Modular Remote-Cooled Cube-Style Ice Maker
Hoshizaki KM-1601SRJZ3 48-Inch Wide 1635 LB Daily Ice Production Modular Remote-Cooled Cube-Style Ice Maker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hoshizaki KM-1601SRJZ3 48-Inch Wide 1635 LB Daily Ice Production Mo...
Product Description
The Hoshizaki KM-1601SRJZ3 is a high-capacity, cube-style ice maker designed for commercial use in restaurants, hotels, healthcare facilities, and offices. It produces crescent-shaped ice cubes efficiently and reliably, meeting the demands of high-volume environments. The stainless steel construction provides durability and hygiene, while its remote condenser design supports flexible installation.
Features
Design and Construction
-
Stainless steel exterior for corrosion resistance and easy cleaning
-
Remote condenser configuration for flexible installation (sold separately; “Z” model ice machines must be paired with “Z” model condensers)
-
ENERGY STAR rated for efficient operation
-
NSF and UL certified for safety and sanitation
Ice Production
-
Produces crescent-style ice cubes suitable for beverages and food presentation
-
H-GUARD Plus antimicrobial protection for cleaner ice production
-
Production capacity up to 1635 lb per 24 hours at 70°F air / 50°F water
-
AHRI certified at 1600 lb per 24 hours at 90°F air / 70°F water
Electrical and Dimensions
-
Electrical: 208–230V / 60Hz / 3 Phase
-
Height: 27.38 inches
-
Width: 48 inches
-
Depth: 27.38 inches
-
Weight: 335 lbs
Performance
-
High-volume output supports consistent service during peak demand
-
Remote condenser minimizes heat and noise in production areas
-
Energy-efficient design reduces overall power consumption
-
Reliable performance under heavy use conditions
Applications
Food Service
Delivers a steady supply of crescent-style ice for beverage service and food preparation.
Healthcare
Provides sanitary ice suitable for patient care and medical use.
Hospitality
Provides reliable ice availability for guest services and event operations.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Hoshizaki |
| Model Number | KM-1601SRJZ3 |
| Manufacturer Part # | KM-1601SRJZ3 |
| Ice Type | Crescent Cubes |
| Condenser Type | Air-cooled |
| Refrigeration | Remote (refrigeration not included) |
| Energy Efficiency | ENERGY STAR |
| Width (Side to Side) | 40–49" Wide |
| Production per 24 hr | 1601–1700 lb (727–771 kg) |
| Height | 27.38" |
| Width | 48" |
| Depth | 27.38" |
| Weight | 335 lbs |
| NSF Certified | Yes |
| UL Certified | Yes |
| AHRI Certified | Yes |
| ENERGY STAR Rated | Yes |
Warranty
Commercial warranty coverage includes:
-
3 years parts and labor
-
5 years evaporator parts and labor
-
5 years compressor and condenser parts
