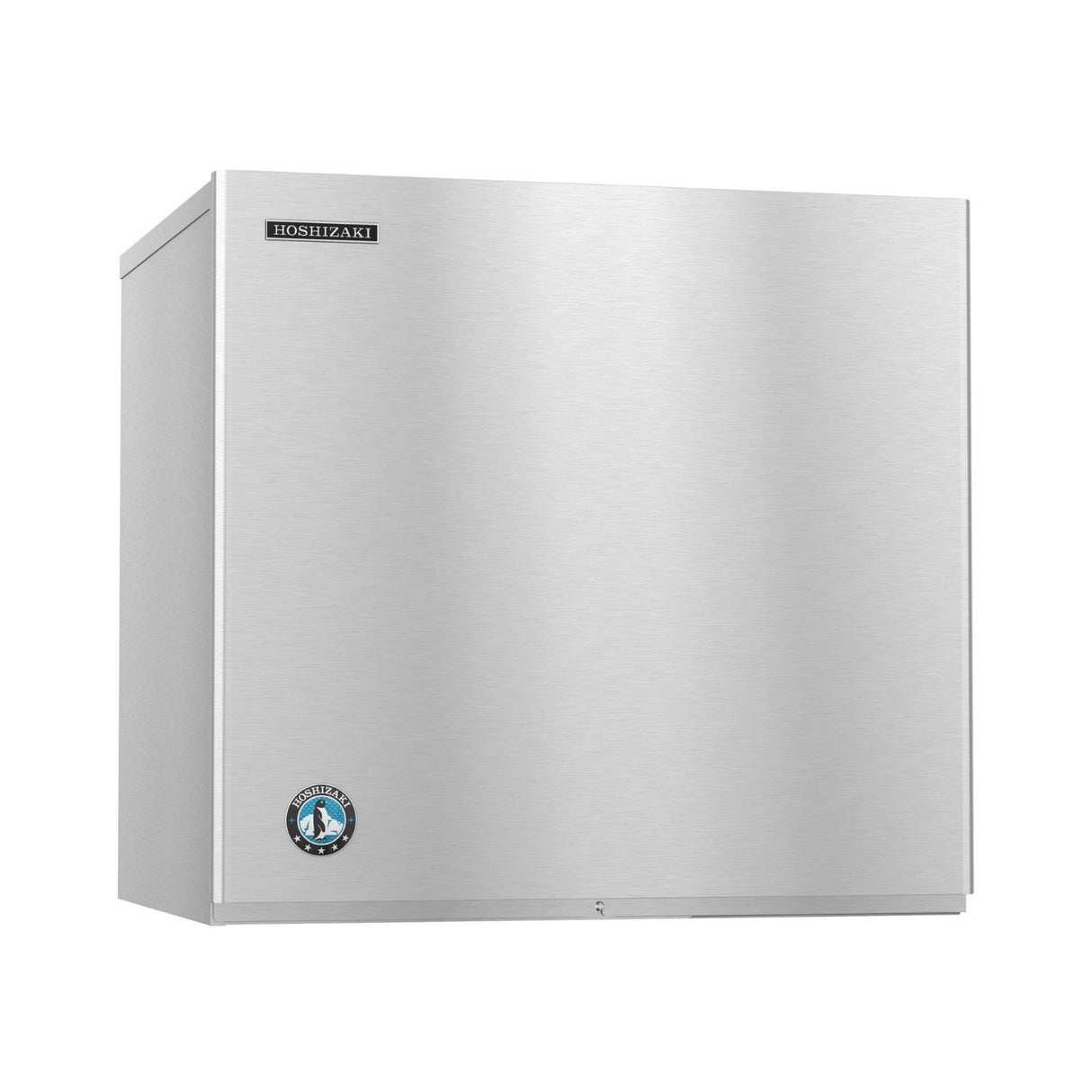

Hoshizaki KMD-860MRJZ 30-Inch Wide 967 LB Daily Ice Production Modular Remote-Cooled Cube-Style Ice Maker

Product Description

The Hoshizaki KMD-860MRJZ is a cube-style, remote condenser ice maker designed for commercial use in food service, healthcare, and hospitality environments. It produces crescent-style ice cubes and features a stainless steel exterior for durability and ease of cleaning.

This model provides a production capacity of up to 967 pounds of ice per 24 hours at 70°F air and 50°F water temperatures (850 pounds AHRI certified at 90°/70°F). The air-cooled, remote condenser setup (sold separately) allows for flexible installation and efficient heat management.

Features

Design and Construction

• Stainless steel exterior supports long-term durability and corrosion resistance

• Remote condenser configuration allows flexible placement (requires compatible “Z” model condenser)

• Air-cooled operation supports stable performance in commercial environments

• Includes H-GUARD Plus Antimicrobial Agent for internal component protection

• Uses R-404A refrigerant

Ice Production

• Produces crescent-shaped ice cubes suitable for beverage, display, and general service applications

• Operates on 208–230V/60/1-ph power, 12.5 amps

• NSF, UL, and AHRI certified for sanitation and performance standards

Dimensions

• Width: 30 inches

• Depth: 24.63 inches

• Height: 28 inches

• Weight: 256 lbs

Performance

• Produces up to 967 lbs of crescent-style ice per 24 hours at 70°/50°F air and water conditions

• AHRI certified at 850 lbs per 24 hours at 90°/70°F

• Remote condenser setup supports temperature control and reduced in-room heat levels

• Built for continuous ice production in high-demand commercial applications

Applications

Food Service

Provides crescent-style ice for beverages, food display, and kitchen operations.

Healthcare

Suitable for patient care, clinical, and laboratory applications requiring sanitary ice.

Hospitality

Supports beverage stations, event venues, and hotel service areas with steady ice output.

Technical Specifications

Warranty

Commercial coverage includes:

• 3 years parts and labor

• 5 years evaporator parts and labor

• 5 years compressor and condenser parts
