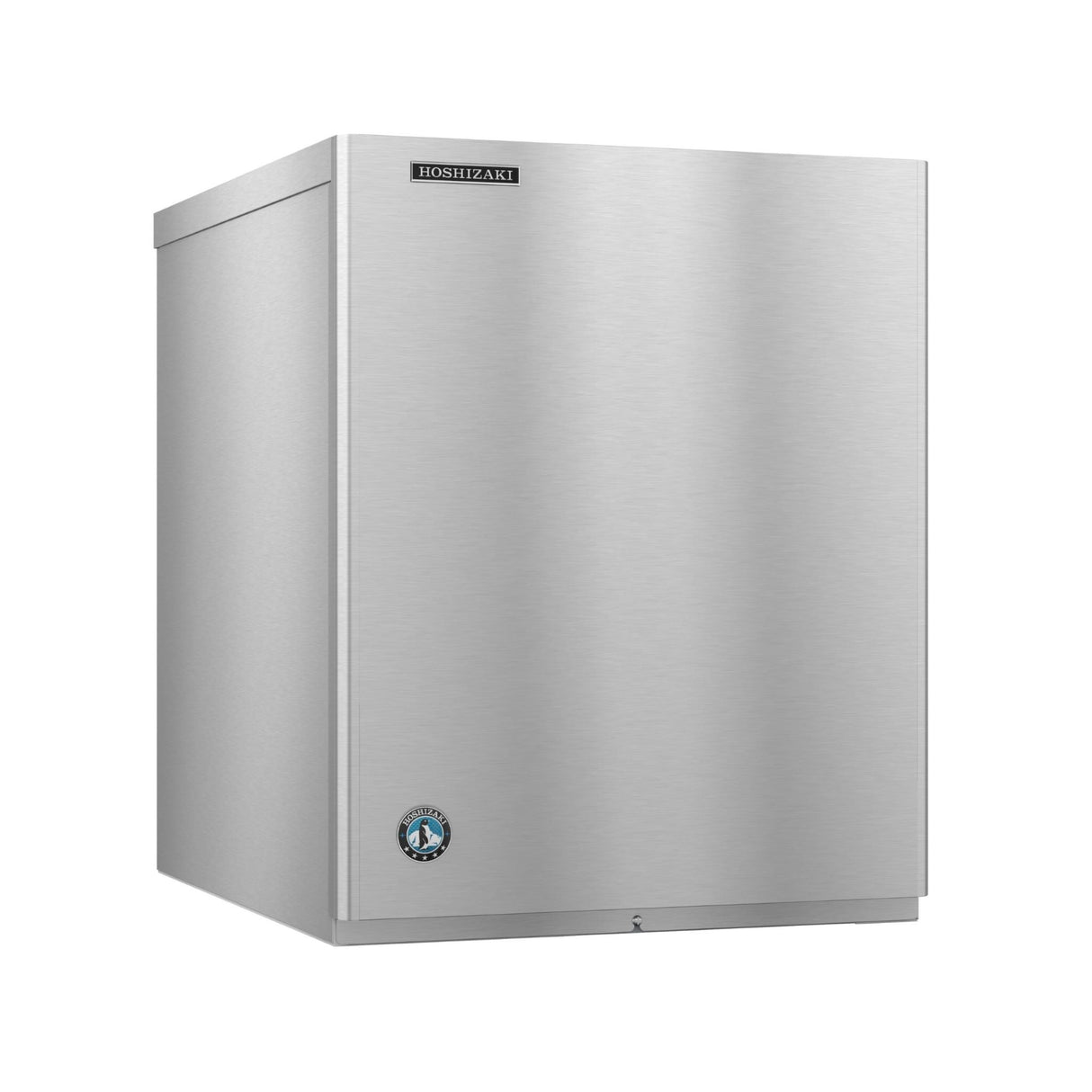

Hoshizaki KM-660MRJZ 22-Inch Wide 642 LB Daily Ice Production Modular Remote-Cooled Cube-Style Ice Maker

Product Description

The Hoshizaki KM-660MRJZ is a cube-style, remote condenser ice maker designed for commercial use in restaurants, hotels, healthcare facilities, and office environments. It produces crescent-style ice cubes and is built with a stainless steel exterior for strength, cleanliness, and ease of maintenance.

This model produces up to 642 pounds of ice per 24 hours at 70°F air and 50°F water temperatures (570 pounds AHRI certified at 90°/70°F). It operates with a remote condenser (sold separately) and is ENERGY STAR certified for energy-conscious performance.

Features

Design and Construction

• Stainless steel exterior supports durability and easy cleaning

• Remote condenser allows flexible placement and better heat control (requires compatible “Z” model condenser)

• Air-cooled configuration simplifies installation and servicing

• Uses R-404A refrigerant

Ice Production

• Produces crescent-shaped ice cubes for beverage and food service applications

• Operates on 115V/60/1-ph power, 16.1 amps

• ENERGY STAR, NSF, UL, and AHRI certified for efficiency and safety standards

Dimensions

• Width: 22 inches

• Depth: 27.38 inches

• Height: 28 inches

• Weight: 180 lbs

Performance

• Produces up to 642 lbs of crescent-style ice per 24 hours at 70°/50°F conditions

• AHRI certified at 570 lbs per 24 hours at 90°/70°F

• Remote condenser supports continuous operation in high-demand commercial settings

• ENERGY STAR certification reflects reduced energy consumption for daily operation

Applications

Food Service

Supports beverage stations, food preparation areas, and catering operations requiring steady ice production.

Healthcare

Suitable for clinical, laboratory, and patient care use where consistent ice availability is important.

Office and Hospitality

Provides crescent-style ice for break rooms, hotels, and guest service areas.

Technical Specifications

Warranty

Commercial coverage includes:

• 3 years parts and labor

• 5 years evaporator parts and labor

• 5 years compressor and condenser parts
