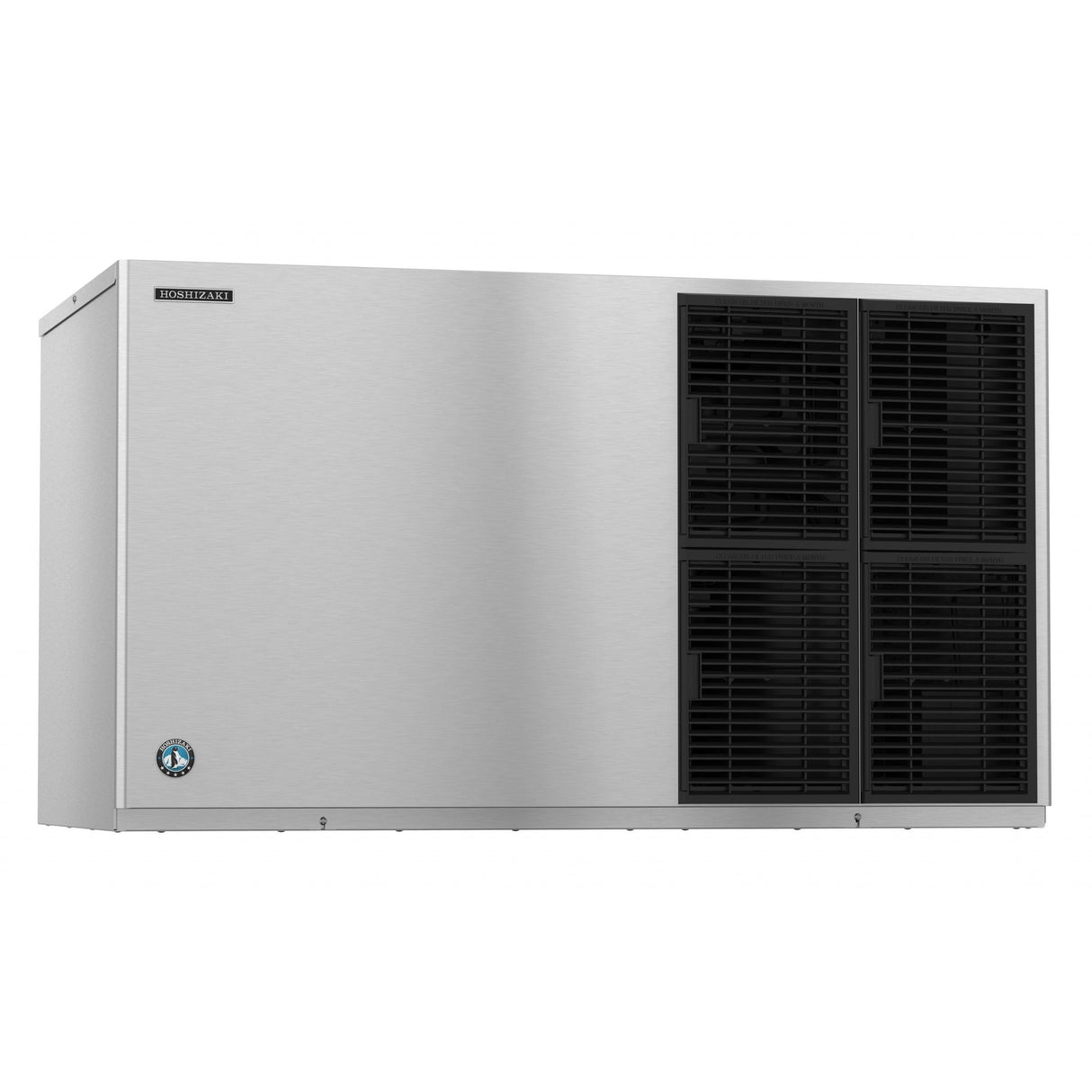

Hoshizaki KM-1301SAJ-E (50hz Model) Ice Maker Cube-Style 48"W

Product Description

The Hoshizaki KM-1301SAJ-E (50Hz Model) is a cube-style, air-cooled ice maker designed for high-volume commercial use in restaurants, hotels, healthcare facilities, and offices. It produces crescent-style ice cubes and features a stainless steel exterior that supports durability, hygiene, and ease of maintenance.

This self-contained unit produces up to 624 kilograms of ice per 24 hours at 21°C air and 10°C water temperatures (501 kilograms AHRI certified at 32°C/21°C). It operates on a 220–230V/50/1-ph power supply and uses R-404A refrigerant.

Features

Design and Construction

• Stainless steel exterior designed for long-term durability and corrosion resistance

• Air-cooled, self-contained condenser simplifies setup and maintenance

• Compact footprint for integration into commercial kitchens and service areas

• Uses R-404A refrigerant

Ice Production

• Produces crescent-shaped ice cubes suitable for beverage, food display, and general service applications

• Operates on 220–230V/50/1-ph, 11.35 amps

• NSF and CE certified for safety and sanitation compliance

Dimensions

• Width: 48 inches

• Depth: 27.38 inches

• Height: 27.38 inches

• Weight: 340 lbs

Performance

• Produces up to 624 kg (1,376 lbs) of ice per 24 hours at 21°C/10°C conditions

• AHRI certified at 501 kg (1,104 lbs) per 24 hours at 32°C/21°C

• Air-cooled condenser supports consistent operation in high-demand environments

• Built for continuous commercial use requiring daily large-scale ice production

Applications

Food Service

Supports beverage stations and food displays in restaurants and catering operations.

Healthcare

Suitable for patient care, clinical, and laboratory use.

Offices and Hospitality

Provides ice access for employee, guest, or customer service areas in hotels, offices, and similar facilities.

Technical Specifications

Warranty

Commercial coverage includes:

• 3 years parts and labor

• 5 years evaporator parts and labor

• 5 years compressor and condenser parts
